CLF POSEIDON

5,779.67 5,394.00 Τιμή Internet

POWERFUL OUTDOOR BEAM
  • SMOOTH CMY COLOR MIXING
  • IP65 RATING
  • GOBO WHEEL WITH ANIMATION RANGE
  • DOUBLE PRISM
  • FROST
  • 190MM WIDE LENS
  • Περιγραφή

Περιγραφή

CLF POSEIDON

The CLF Poseidon is a powerful outdoor beam fixture that has been developed for smooth CMY color mixing. Based on the successful CLF Aorun, the Poseidon comes with a fast and accurate feature set including a double prism, gobo wheel, animation section and frost. The 190mm wide lens and unique optics allow big mid-air effects with a bright and punchy beam, delivered by a 400W light source. Colors can be mixed smoothly by using the CMY wheels and a fixed color wheel is also available.

The elegantly shaped, IP65 rated, housing is equipped with specially designed motors enabling fast pan and tilt movements. A bright O-LED screen offers easy access to on-board settings, even in bright environments. All-in all, the Poseidon is the fastest and most powerful outdoor beam in its class.



Power
Input voltage 100 – 240 VAC, 50/60HZ
Standby power 550W
Total power consumption 650W
Typical current 2.83A
COS φ
Power plug type Seetronic Powercon TRUE
Source
Lamp Ushio 400W
Lamp hours 4000
Color temperature 7300K
Optical
Beam angle 1.8°
Photometric
Output @10M 564000 Lux
Output @50M 25400 Lux
Effects
Color CMY
14 + open color wheel
Gobo 14 + open fixed gobo wheel
Prism 8-facet round, 16-facet round
Frost 6° wash
Dimmer 0-100%
Shutter 12 hz/second, random
Pan 540°
Tilt 240°
Heat management

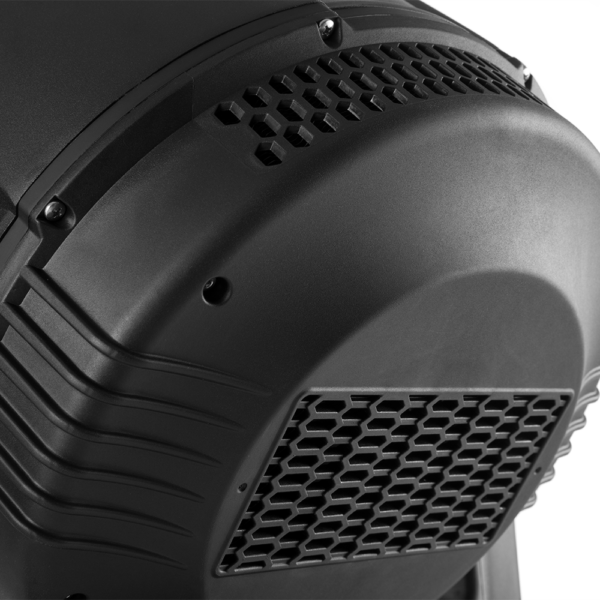

Cooling type Regulated Fans
Max. ambient temp. Ta max=40°C
Min. ambient temp. Ta min=-20°C
Control
Control protocol USITT DMX512/1990
DMX channels 17
RDM Yes
WDMX Yes
DMX Input 5-pin
RDM Yes
Hardware
Interface LCD Display
Software upload DMX, via special box
Installation
Mounting orientation Any
IP rating IP65
Housing
Safety attachment point Yes
Position lock Tilt
Physical
Net product weight 35kg
Length 726mm
Width 488mm
Height 312mm
Approvals
Approved certifications CE and RoHS
Information
Article number 160030
Related
Included items Manual, Power cable, safety
Optional CLF Omega bracket
Availability: Σε απόθεμα Κωδικός προϊόντος: 160030 Κατηγορία:
