LD Systems ICOA 12 A

318.86 298.00 Τιμή Internet

LD Systems ICOA 12 A

  • Περιγραφή

Περιγραφή

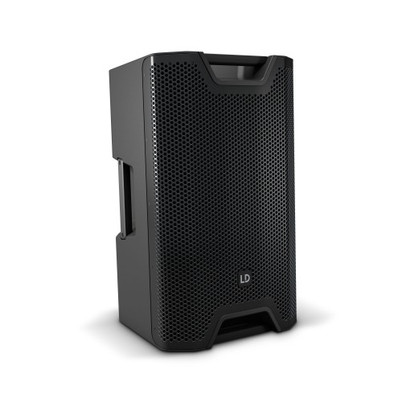

LD Systems ICOA 12 A

12″ Powered Coaxial PA Loudspeaker

  • A genuine all-rounder for full-range, satellite and monitor applications
  • 126 dB max. SPL and 1200 W peak power

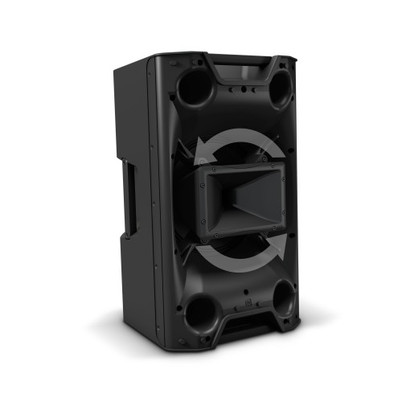

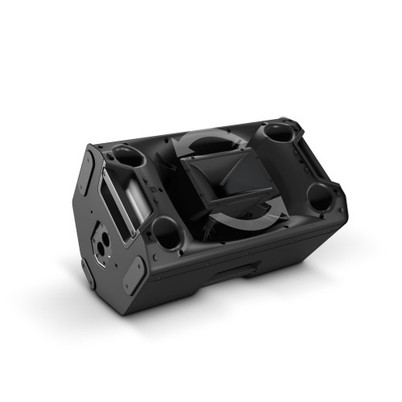

  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
  • Horn-loaded woofer
  • DynX DSP with 4 presets, 3-band EQ and delay function
  • 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model

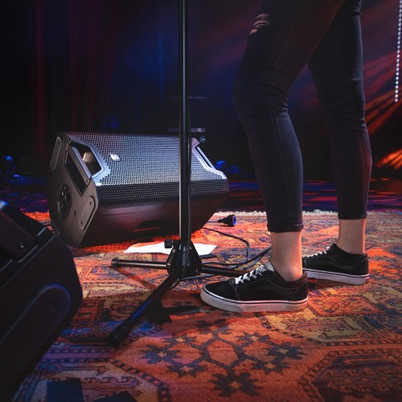

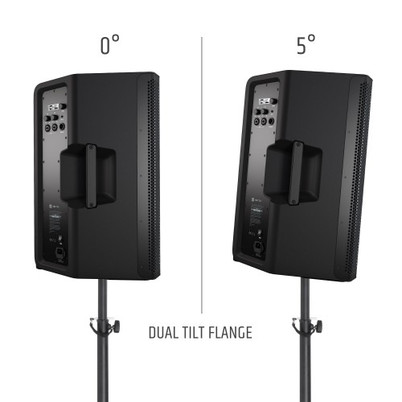

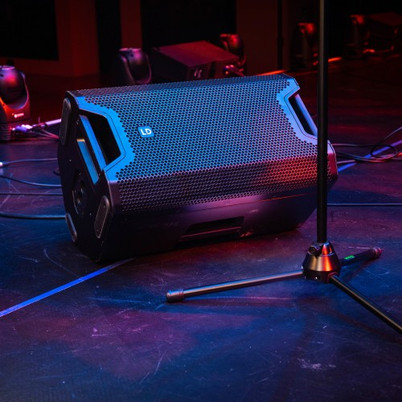

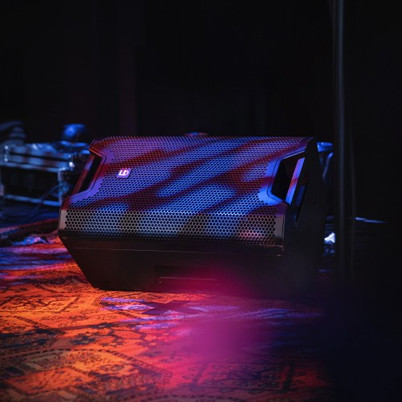

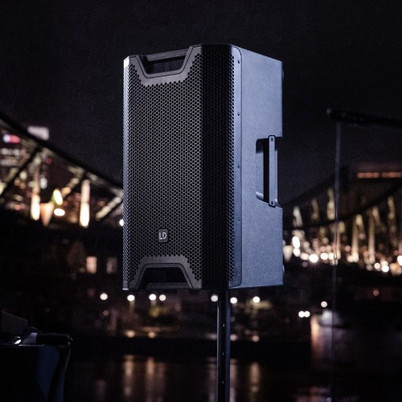

  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand

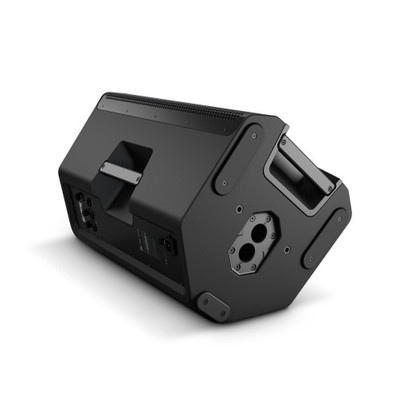

  • 6 x M10 flying points
  • Shock-resistant front grille for optimal protection of the speaker
  • 4 aluminium grips with ergonomic, rubber surface
  • Extensive, optionally available accessories for installation and transport
Product type
PA loudspeaker
Type
Powered
Low/mid driver dimensions
12 “
Woofer size
304.8 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Horn
BEM optimized CD Horn
HF driver dimensions
1 “
HF driver size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1.4 “
HF driver voice coil
35 mm
Amplifier
Class D
Dispersion (H x V)
90° x 50°
RMS
300 W
Peak power
1200 W
Frequency response
50 – 20000 Hz
Crossover frequency kHz
2 kHz
Max. SPL (peak)
126 dB
Protection circuits
Multiband limiter , over voltage , over-current , thermal overload

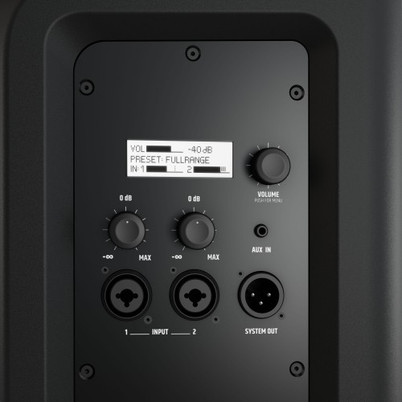

Controls
2 x gain , On / off switch , Rotary/push encoder
Indicators
LC display
Mic/ line inputs
2
Mic-/ Line Input Connectors
6.3 mm jack Combination sockets (symmetrical) , XLR
Line inputs
1
Line input connectors
3.5 mm TRS
Line outputs
1
Line output connectors
XLR
Operating voltage
SMPS
Power consumption
150 W
Ambient temperature ( in operation )
0 – 40 °C
Operating voltage
100 V – 240 V AC / 50 – 60 Hz
Relative Humidity
< 80 %, not condensing
Fuse
T4AL 250 V
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex
Mounting
36mm flange (0°, 5°) , 6 x M10 flying points
Monitor angle
55 °
Width
375 mm
Height
635 mm
Depth
396 mm
Weight
19,95 kg
Accessories (included)
Power cord
Availability: Εξαντλημένο Κωδικός προϊόντος: LDICOA12A Κατηγορία:
