LD Systems U306 IEM

208.95 199.00 Τιμή Internet

LD Systems U306 IEM

Κατόπιν παραγελίας

  • Περιγραφή

Περιγραφή

LD Systems U306 IEM

In-Ear Monitoring-System – 655 – 679 MHz
  • Reliable wireless transmission with a range of up to 100 m
  • Low-reaching frequency response
  • 12 selectable channels
  • Choice of stereo or mono mode
  • Up to 6 systems can be used simultaneously
  • 10-hour bodypack operating time with two AA batteries
  • Unlimited number of bodypacks can be set to the same transmission frequency
  • Channel and RF reception displayed on bodypack
  • Transmitter in rugged metal casing with stereo level display
  • Removable antenna with BNC connection
  • 19″ rack assembly kit included.
Product type
In-ear Monitoring

Type
Set

Transmission frequency range
655 – 679 MHz

Weight
1,51 kg

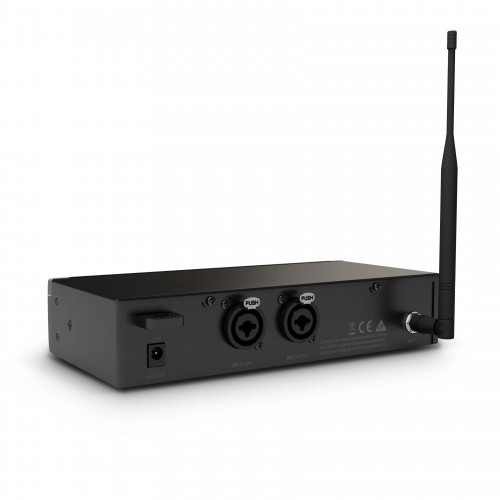

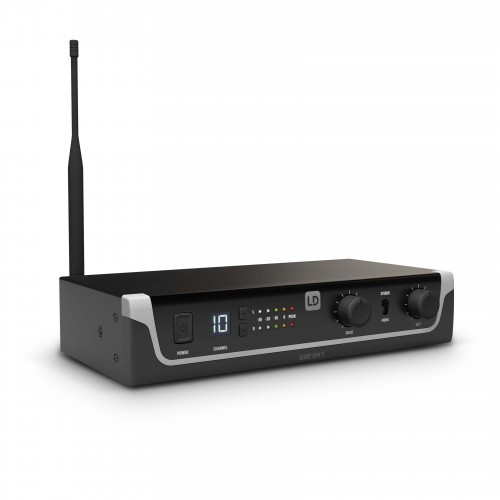

LDU306IEMT – LD Systems U306 IEM T Transmitter


Product type
In-ear Monitoring Accessories

Type
Transmitters

Channels
12

Modes of operation
mono/stereo

Transmission method
FM, mono/stereo

Rated HF output power
10 mW

Total Harmonic Distortion (THD)
<0,5%

Frequency response
50 – 16.000 Hz

Signal-to-noise ratio
90 dB

Dynamic range
88 dB

Antenna connector
BNC

Inputs
2

Controls
input level , Mono/stereo switch , Power On/Off

Input connectors
6.3 mm jack , XLR

Input impedance (kOhms)
8.5 kOhm

Indicators
LC display

Input sensitivity
-4.5 dbu

Operating voltage
12 – 18 V DC

Width
212 mm

Height
43 mm

Depth
123 mm

Power consumption
1.7 W

Weight
0,66 kg

Accessories (included)
19″ Rack mount kit , BNC-Antenna , Power supply

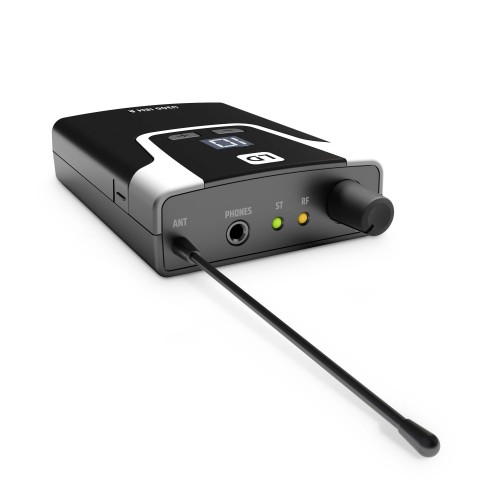

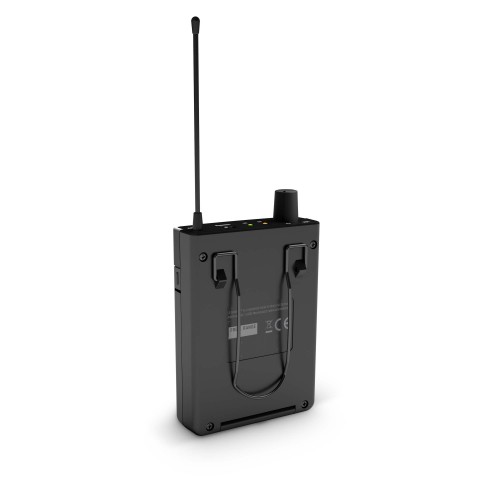

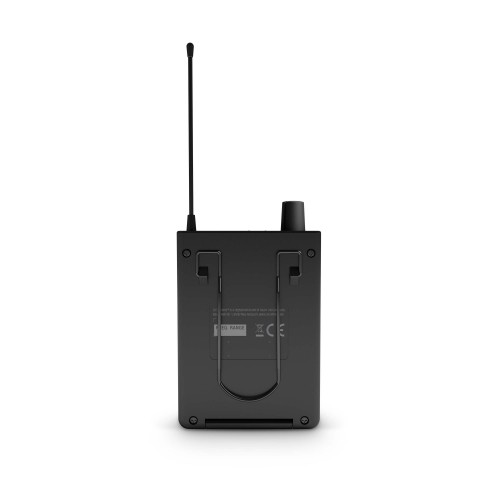

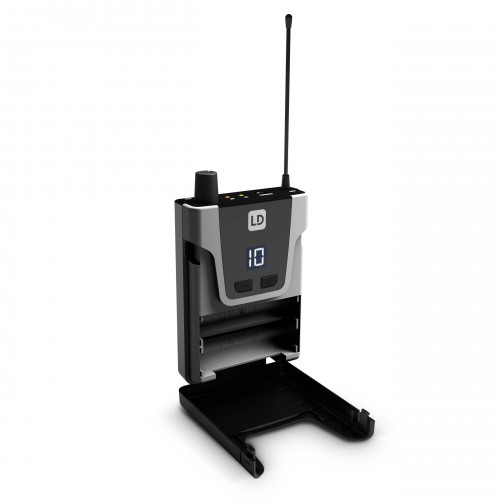

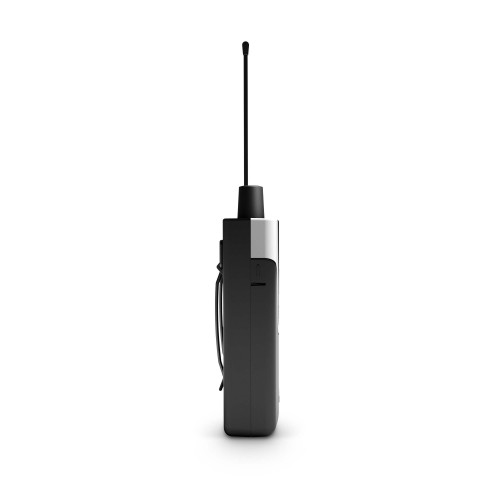

LDU306IEMR – LD Systems U306 IEM R Receiver


Type
Receivers

Total Harmonic Distortion (THD)
0.25 %

Audio output
3.5 mm TRS

Minimum connected impedance
16 Ohm(s)

Max. audio output level
100 (@ 16 Ohms load capacity) mW , 73 (@ 33 Ohms load capacity) mW

Antenna connector
Fixed to housing

Controls
Channel down , Channel up , on/off switch , volume control

Indicators
RF (LED)

Operating voltage
2 x 1.5 V AA

Operating time
< 10 Std.

Width
64 mm

Height
103 mm

Depth
24 mm

Weight
0,085 kg

Features
battery status LED , incl. batteries
Availability: Εξαντλημένο Κωδικός προϊόντος: LDU306IEM Κατηγορίες: ,
