LD Systems U508 HBH 2

682.50 650.00 Τιμή Internet

LD Systems U508 HBH 2

Κατόπιν παραγγελίας

  • Περιγραφή

Περιγραφή

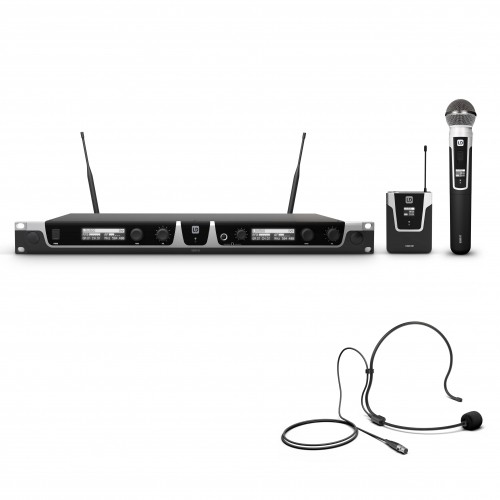

LD Systems U508 HBH 2

Wireless Microphone System with Bodypack, Headset and Dynamic Handheld Microphone



  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display
Product type
Wireless Microphone Systems

Type
Headsets / Handhelds

Transmission frequency range
823 – 832 MHz , 863 – 865 MHz

Weight
5,259 kg

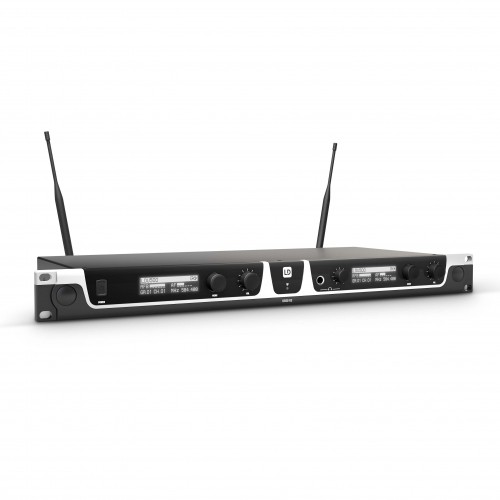

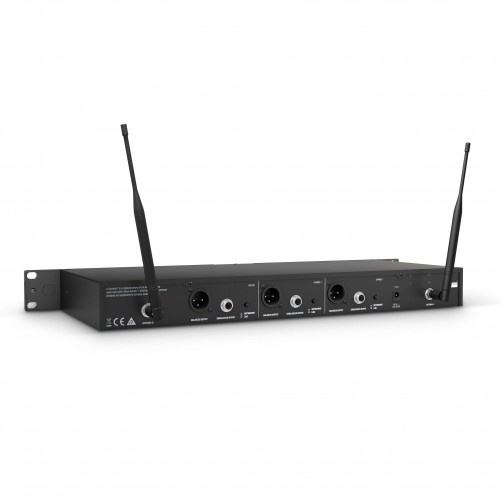

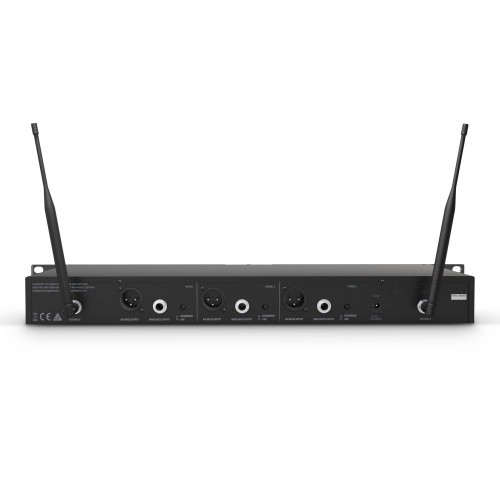

LDU508R2 – LD Systems U508 R2 Dual receiver


Product type
Wireless Microphone System Accessories

Type
Receivers

Modulation Type
FM

Channels
2 x 96 (8 groups of 12 channels)

Frequency response
30 – 16000 Hz

Groups
8

Antenna inputs
2

Antenna connector
BNC

Signal-to-noise ratio
> 100 dB

Noise reduction
Squelch

Total Harmonic Distortion (THD)
< 0.1 %

Indicators
2 x OLED Display

Controls
2 x volume , Down , Power On/Off , Up , volume

Audio output, balanced
2 x XLR

Audio output, unbalanced
2 x 6.3 mm TS

Audio mix output, balanced
XLR

Audio mix output, unbalanced
2 x 6.3 mm TS

Accessories (included)
2 x antenna , Audio cable , power adapter , Rack kit

Width
484 mm

Height
44 mm

Depth
200 mm

Max. output level
+10 dBu

Weight
2,24 kg

Headphones ouput
1

Headphones outputs
6.3 mm TRS

Other features
channel search function , IR frequency synchronisation , Pilot tone

Operating voltage
12 V DC, 1000 mA

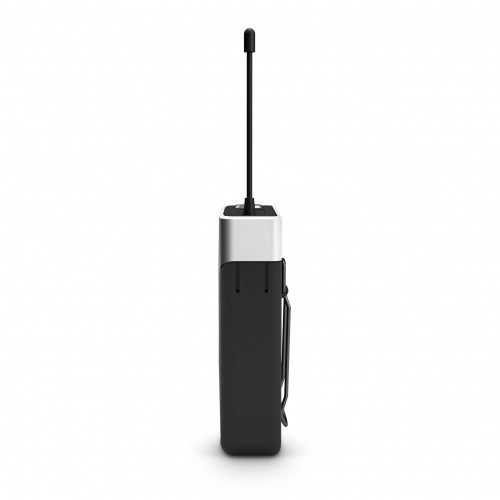

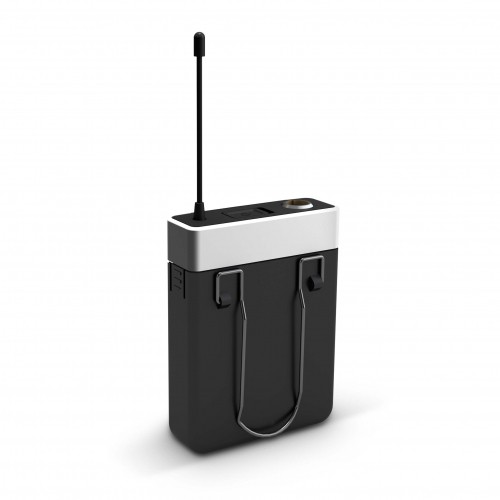

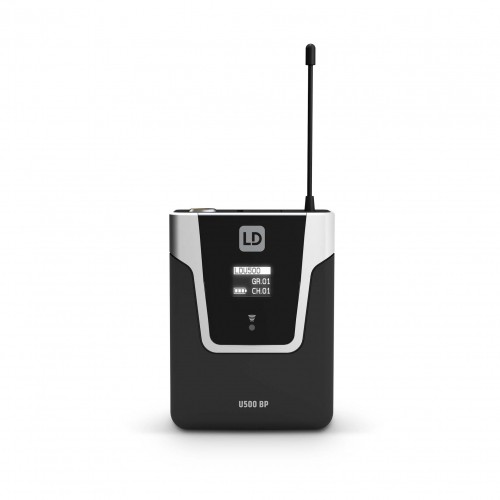

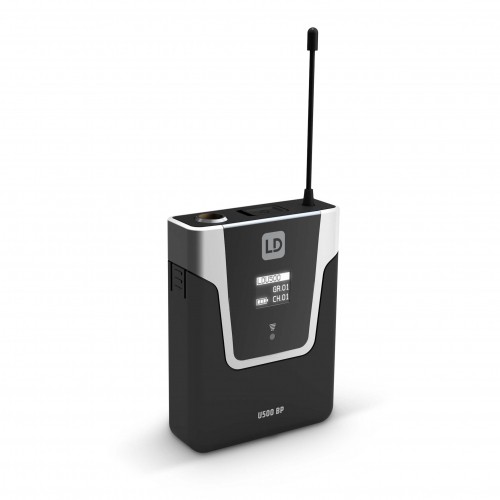

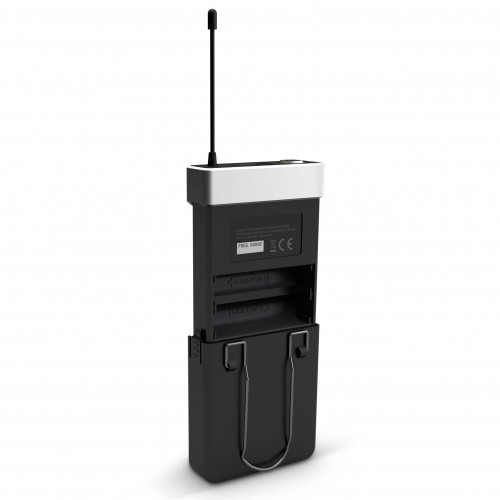

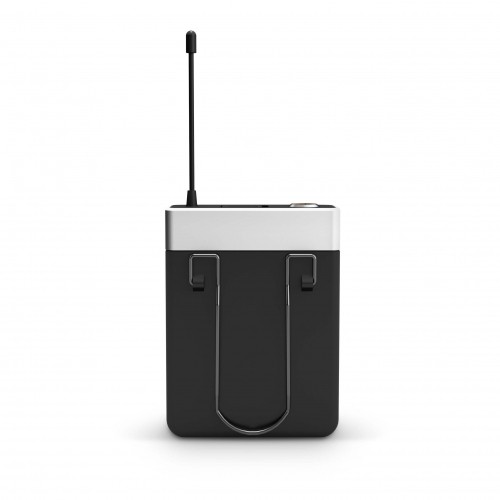

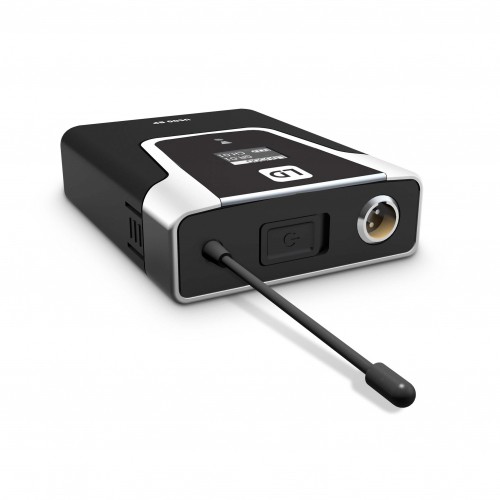

LDU508BP – LD Systems U508 BP Bodypack transmitter


Type
Bodypack

Channels
96 (8 groups of 12 channels)

Inputs
Mini-XLR (3-pin)

Signal-to-noise ratio
>90 dB

Rated HF output power
Variable (2mW, 10mW, 30mW)

Controls
arrow keys (up/down value entry) , select

Indicators
OLED Display

Operating voltage
2 x AA battery

Operating time
>10 h (with alkaline batteries)

Width
65 mm

Height
86 mm

Depth
23 mm

Weight
0,09 kg

Other features
detachable antenna , Pilot tone squelch, switchable gain , switchable gain , switchable RF power

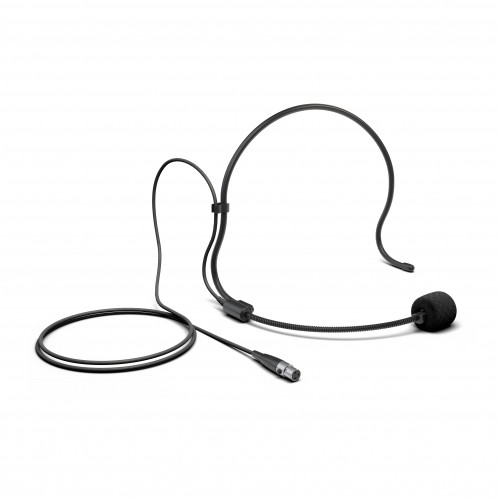

LDWS100MH1 – LD Systems WS 100 MH 1 Headset


Type
Headsets

Frequency response
20 – 20.000 Hz

Nominal impedance
680 Ohm(s)

Phantom power requierements
5 V

Microphone input
Mini-XLR (3-pin, female)

Accessories (included)
Foam windscreen

Weight
0,049 kg

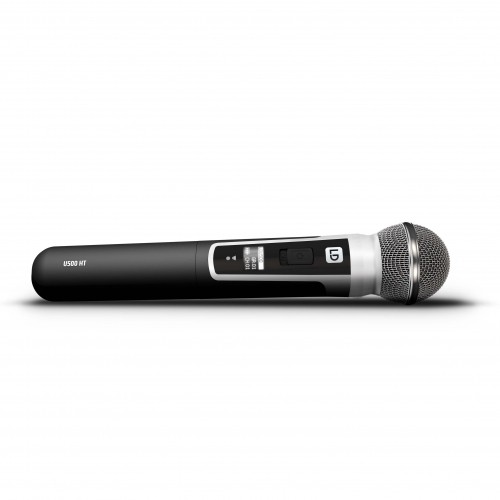

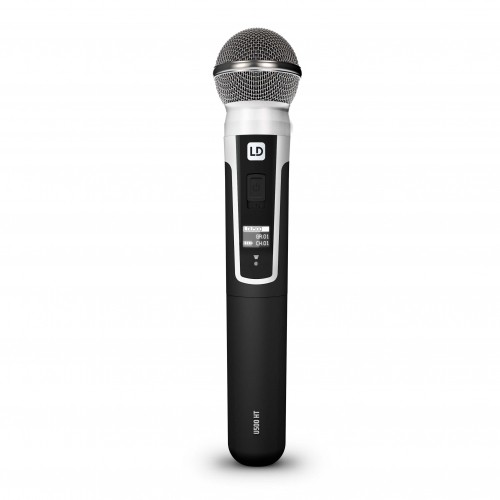

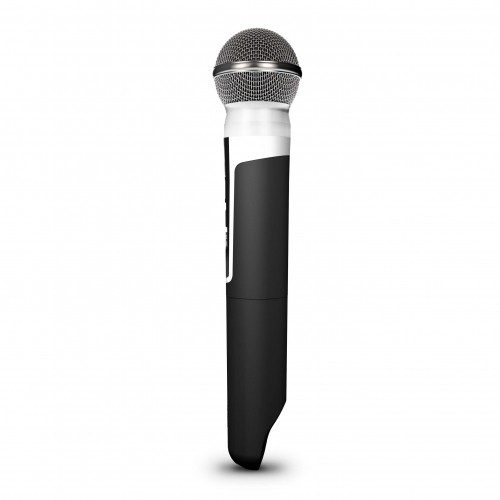

LDU508MD – LD Systems U508 MD Dynamic handheld microphone


Type
Microphones

Frequency response
60 – 16,000 Hz

Microphone type
Dynamic

Directivity
Cardioid

Signal-to-noise ratio
>95 dB

Controls
menu

Weight
0,25 kg

Length
257 mm

Other features

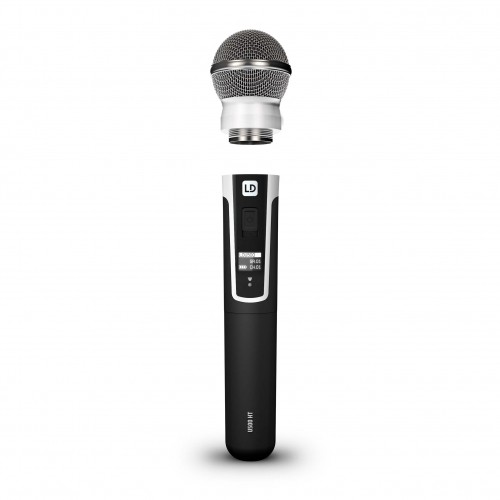

interchangeable capsule
Availability: Εξαντλημένο Κωδικός προϊόντος: LDU508HBH2 Κατηγορίες: ,
